INDUSTRIAL
DUST COLLECTION SYSTEMS
Advanced filtration for demanding environments
VES Cartridge Filter Dust Collectors with HEPA Filtration are engineered for high performance ventilation, contaminant capture and demanding industrial environments. Designed with modular construction, intelligent filter monitoring and heavy duty components, VES systems help maintain airflow, simplify maintenance and support operator protection.
HIGH PERFORMANCE
CARTRIDGE FILTRATION
Industrial strength air movement and cartridge filtration help capture harmful airborne contaminants before they spread.
MODULAR &
EXPANDABLE DESIGN
VES modular dust collection systems can be modified as operational requirements change, helping facilities adapt without replacing the entire system.
INTELLIGENT FILTER
MONITORING
Photohelic pressure gauges monitor filter loading and automatically initiate the electronically controlled reverse-pulse air system to help maintain performance and extend filter life.
INTEGRATED HEPA
FILTRATION
Custom engineered HEPA filters provide 99.97% filtration efficiency for particles larger than 0.3 microns and are designed specifically for each dust collector.
NFPA & OSHA
COMPLIANT
IMPROVE AIR QUALITY
& WORKER SAFETY
REDUCE DOWNTIME
& MAINTENANCE
ENERGY-EFFICIENT
OPERATION
DESIGNED, BUILT
& SUPPORTED IN THE USA
ENGINEERED FOR EASIER, SAFER MAINTENANCE
HEAVY-DUTY FILTER ACCESS
Swing-style filter access doors use a heavy duty cam-over bar latching system that remains attached during filter changes while allowing the doors to be removed when needed.
EASY CARTRIDGE REPLACEMENT
Cartridge filters slide on guide rails and use a positive locking bar with an easy grip metal/rubber locking feature for faster, more secure installation.
BAG-IN-PLACE FILTER CHANGES
Dust collectors are designed so filters can be bagged and changed within the body of the collector, helping reduce personnel and environmental exposure to captured dust.
ADVANCED ENGINEERING DETAILS
Engineered components and smart design deliver reliable performance where it matters most.
ADVANCED CARTRIDGE FILTER TECHNOLOGY
Double Ring Seal Protection: Each cartridge filter uses a double ring seal on the end plate to help prevent contaminant blow-by if a single seal were to fail.
Rivet-Free Filter Pan Construction: VES cartridge filter pans are fully formed without rivets or fasteners used to hold the cartridges in place, reducing potential hardware failure points.
True Vertical Cartridge Positioning:
Cartridges are mounted in a 100% true vertical orientation to support more complete particle discharge across the filter area and help extend filter life.
RELIABLE AIR MOVEMENT

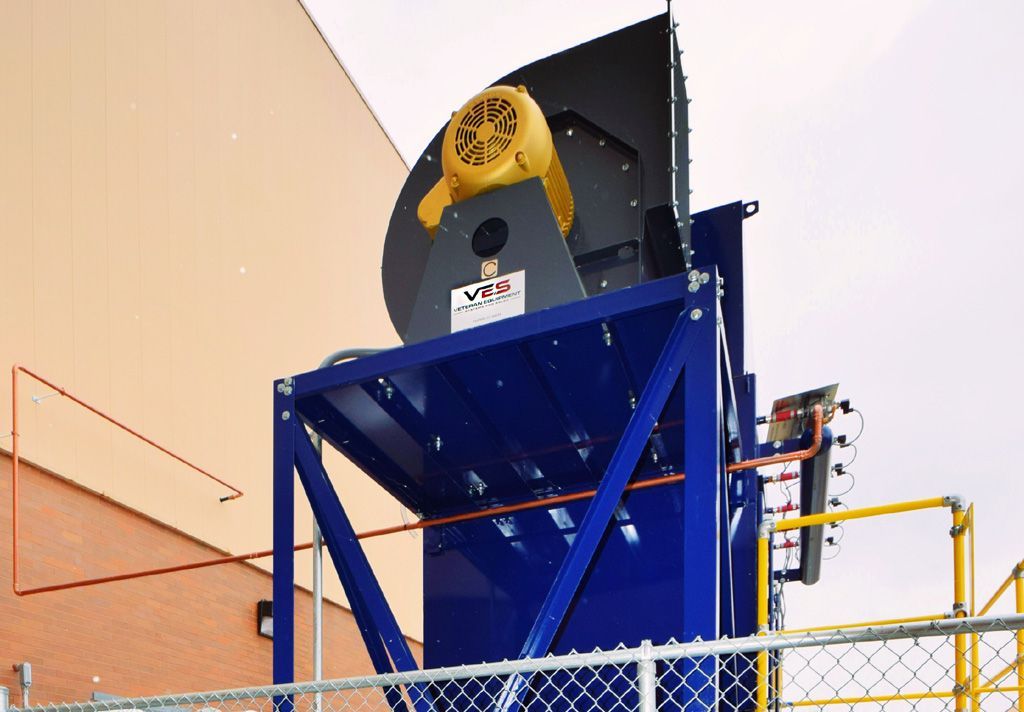

Direct-Drive TEFC Blower Motor System: The fan and motor use a direct-drive configuration with no belts, pulleys or sheaves. This reduces routine maintenance and eliminates common drive-component failure points that can contribute to unexpected downtime.
COMPREHENSIVE LEAK PREVENTION
Fully Enclosed Slide Gate Design: VES slide gates are fully housed and include an internal wiper seal for the actuator rod, helping reduce dust leakage during waste drum change-out.
Gasketed Waste Drum Lid: A gasketed waste drum lid helps maintain containment while keeping rain and other outside elements from entering the drum.
Maintenance-Focused Design: Cartridge filters slide on guide rails and use a positive locking bar with an easy grip metal/rubber locking feature for faster, more secure filter installation.
HEPA FILTRATION SYSTEM
99.97% Filtration Efficiency: VES HEPA filters provide 99.97% filtration efficiency for particles larger than 0.3 microns.
Custom-Engineered for Each Collector: HEPA filters are designed and fitted specifically for each dust collector rather than added as generic aftermarket components.
Negative-Pressure Placement:
HEPA filters are positioned on the negative-pressure side of the blower. If a primary cartridge were to fail, this configuration helps prevent harmful dust from escaping through the system.
WHY CHOOSE VES SYSTEMS?
ENGINEERED. BUILT. SUPPORTED.
VES Systems dust collectors are designed in-house and built to perform in the harshest industrial environments. We don’t just build equipment. We build long-term partnerships.
In-house engineering and custom design
Quality components from trusted manufacturers
Full installation support and system integration
Parts, filters, and service support
Proudly made in the USA
INDUSTRIES WE SERVE
Aerospace
& Defense
Manufacturing
& Fabrication
Mining & Heavy
Equipment
Rail &
Transportation
General
Industry

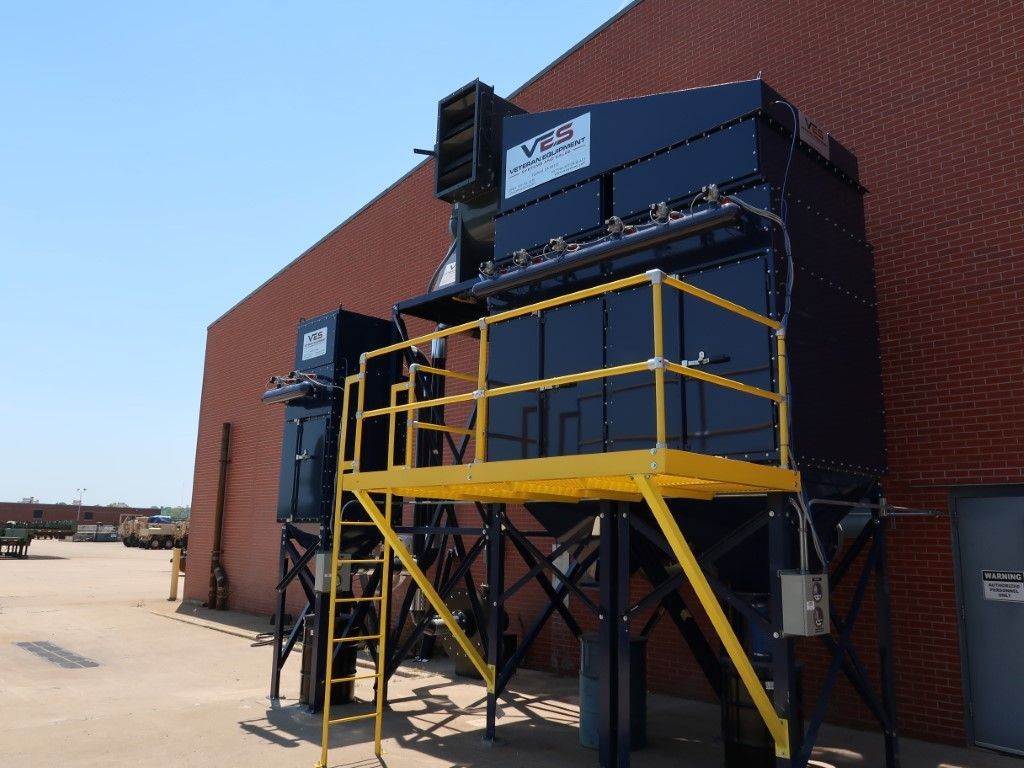

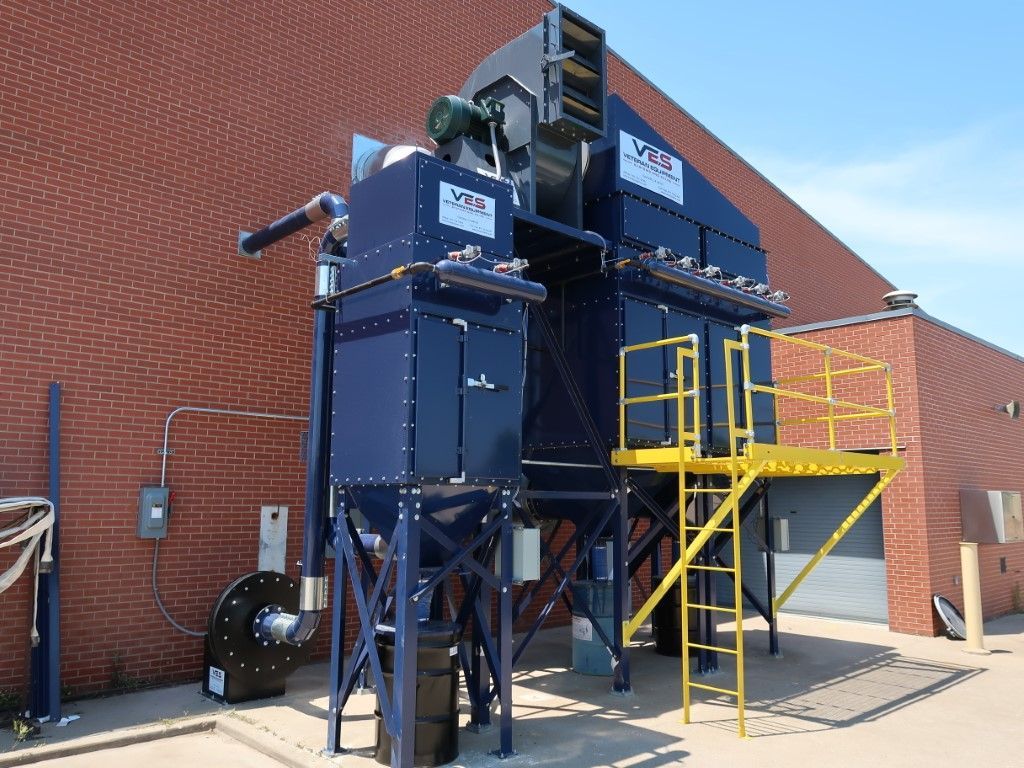

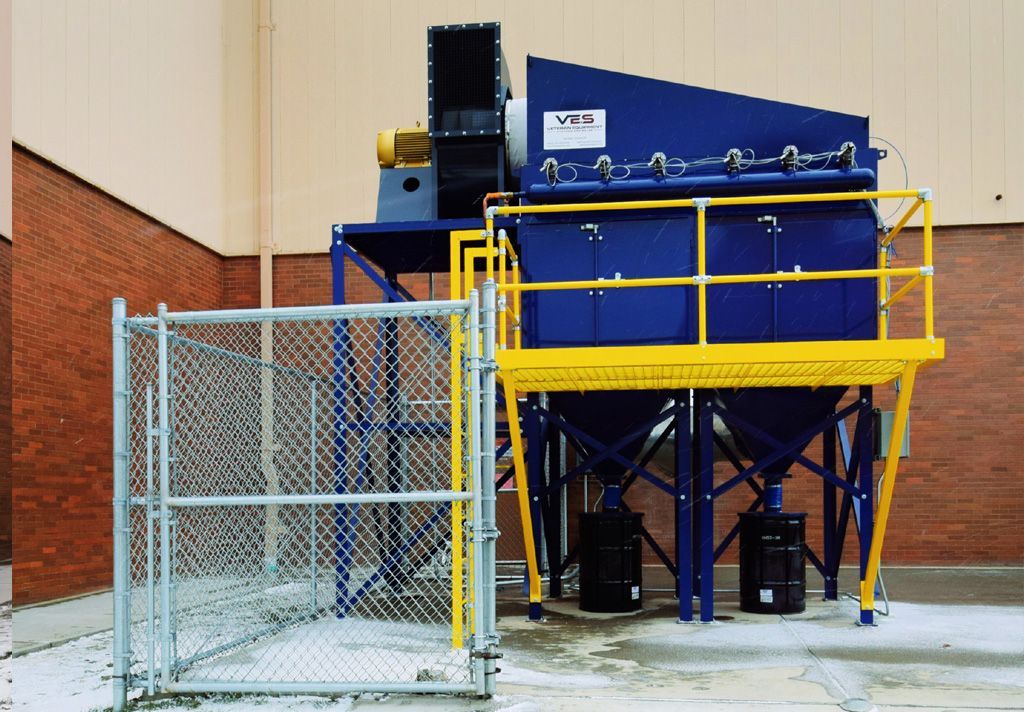

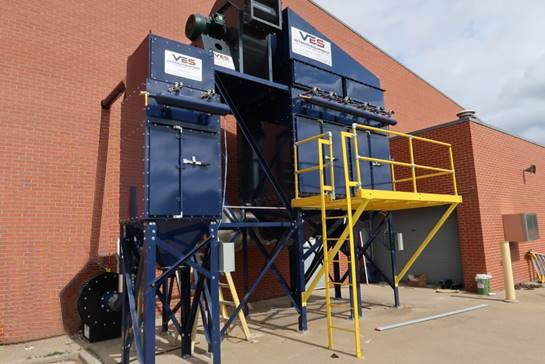

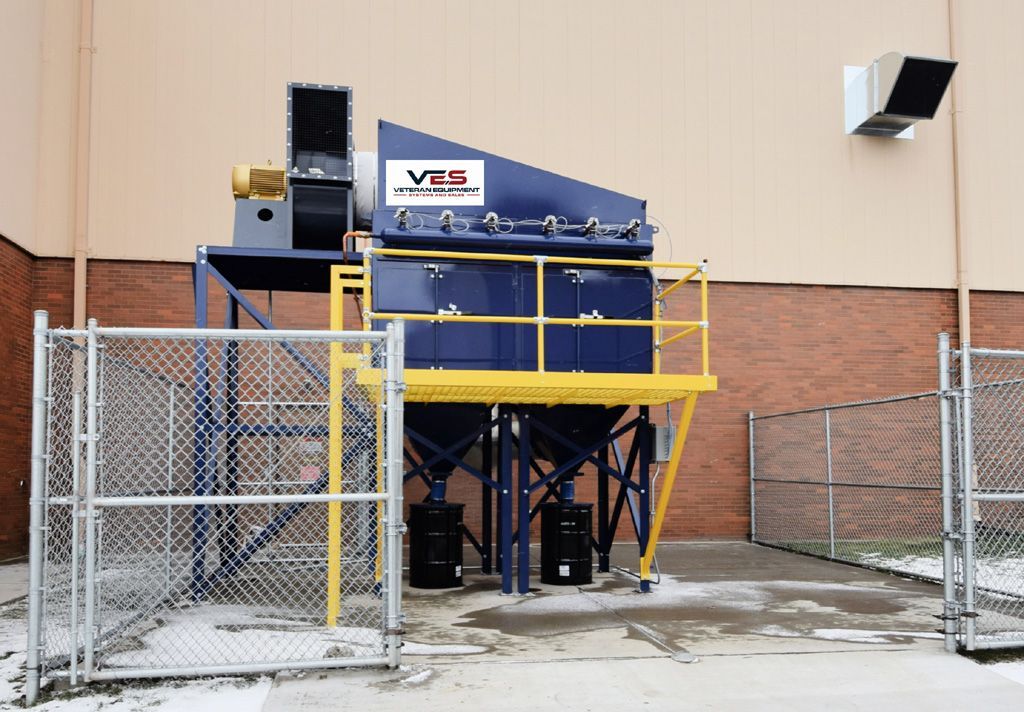

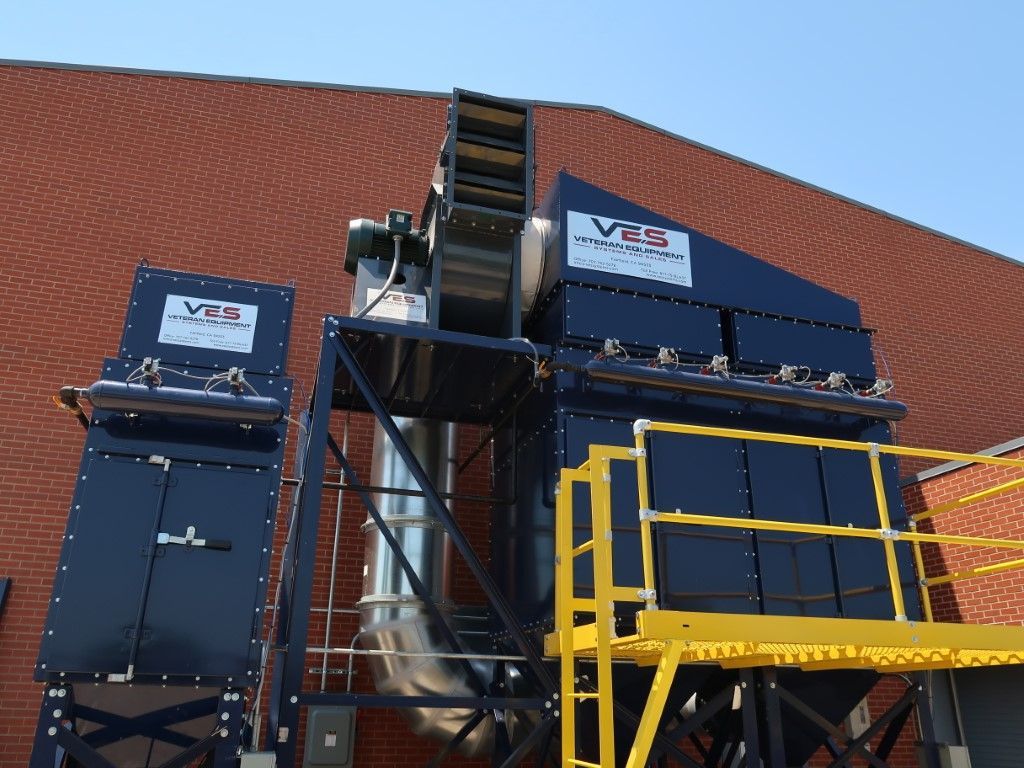

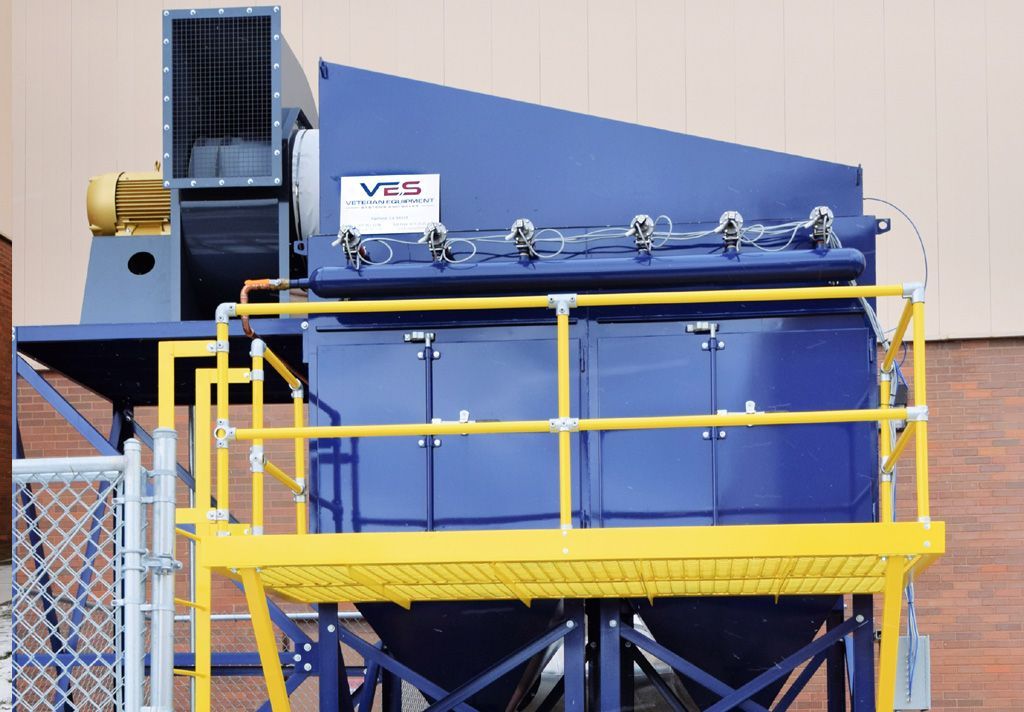

PROVEN IN THE FIELD
BUILT FOR REAL WORLD PERFORMANCE
VES dust collectors are trusted by aerospace, defense, manufacturing, and industrial facilities to help keep operations clean, productive, and dependable.
CLEANER AIR. SAFER WORK.
BETTER RESULTS.
Let’s build the right dust collection system
for your operation. Our team is ready to help.
