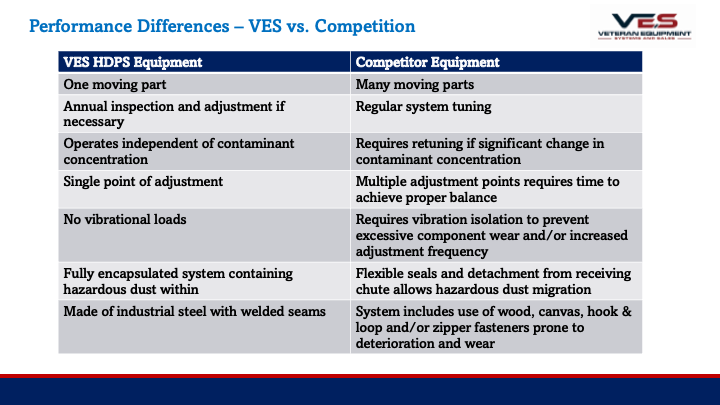

Why Choose the VES HDPS System?

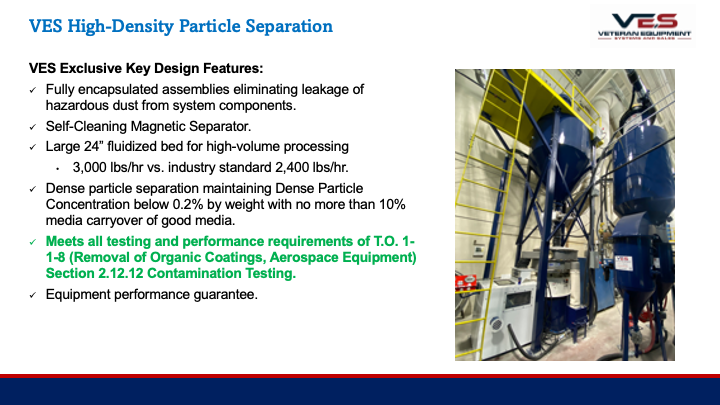

TO 1-1-8 Certified Compliance
Specifically engineered to exceed stringent media cleanliness standards of Technical Order 1-1-8, Section 2.12.12, with performance validated through independent laboratory testing for guaranteed regulatory approval and operational confidence.
All-Steel Durability Construction
Superior all-steel construction eliminates wood and canvas components, providing long-term resistance to environmental extremes including heat, humidity, and cold for extended service life and reliable performance.

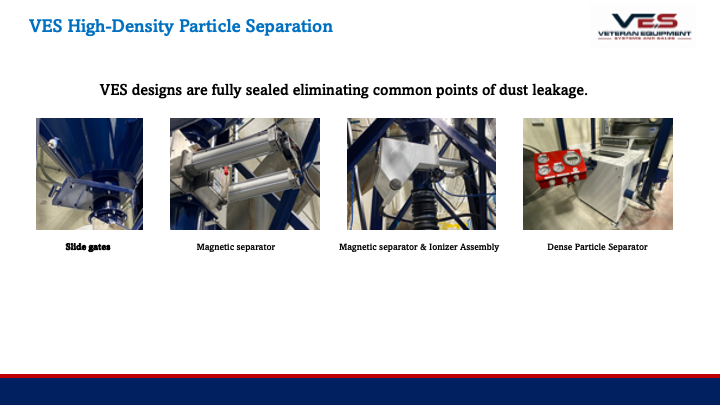

Advanced Dust Containment Technology
Fully encapsulated innovative containment features help prevent media and harmful dust leakage, delivering safer operator conditions and cleaner work environments while maintaining regulatory compliance.
Aerospace-Grade Construction
Heavy-duty steel construction eliminates wood and canvas components, providing superior resistance to environmental extremes including heat, humidity, and cold for extended service life in demanding aerospace applications.
Detailed Specifications:
Advanced Vibratory Classification System
Dual-Screen Three-Deck Separator – Large dual screen system efficiently separates waste materials and fines for optimal media recovery
Integrated Static Control – Built-in ionizer reduces static build-up, enhancing separation efficiency and material flow
Overfill Protection – Rotary airlock and level sensor prevent system overload and ensure continuous operation
Magnetic Separation Technology
Automatic Rare-Earth Separator – Removes ferrous particles automatically for consistent media purity
Self-Cleaning Enclosed Design – Three magnetic rows with alternating centers provide maximum dust control and minimal maintenance
Tramp Metal Protection – Ensures media purity and prevents equipment damage

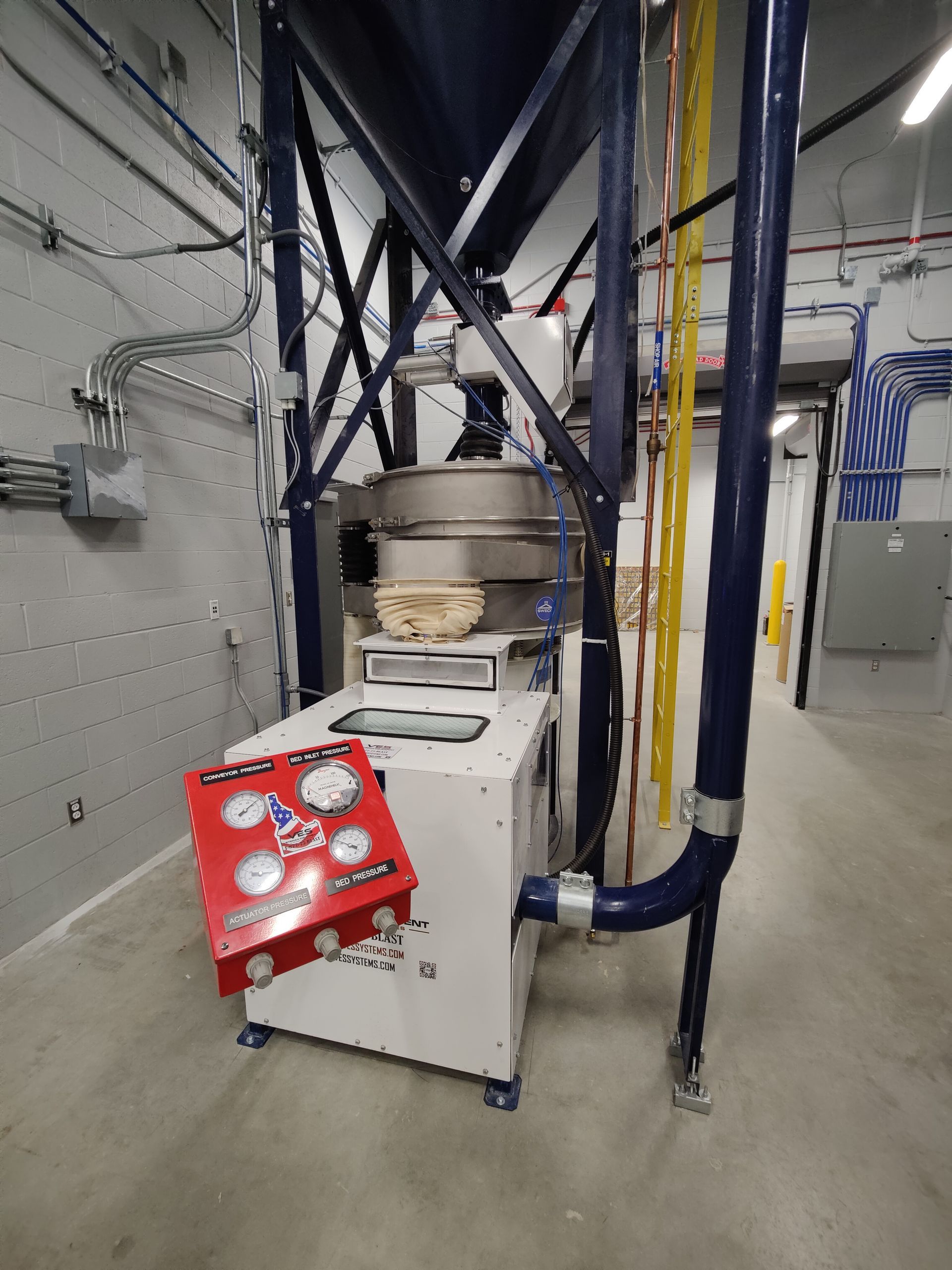

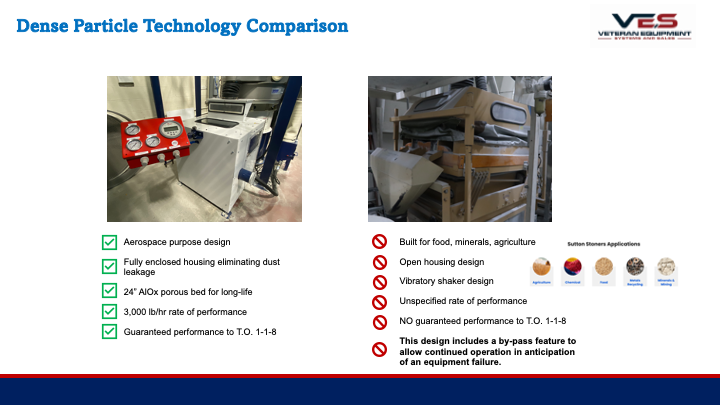

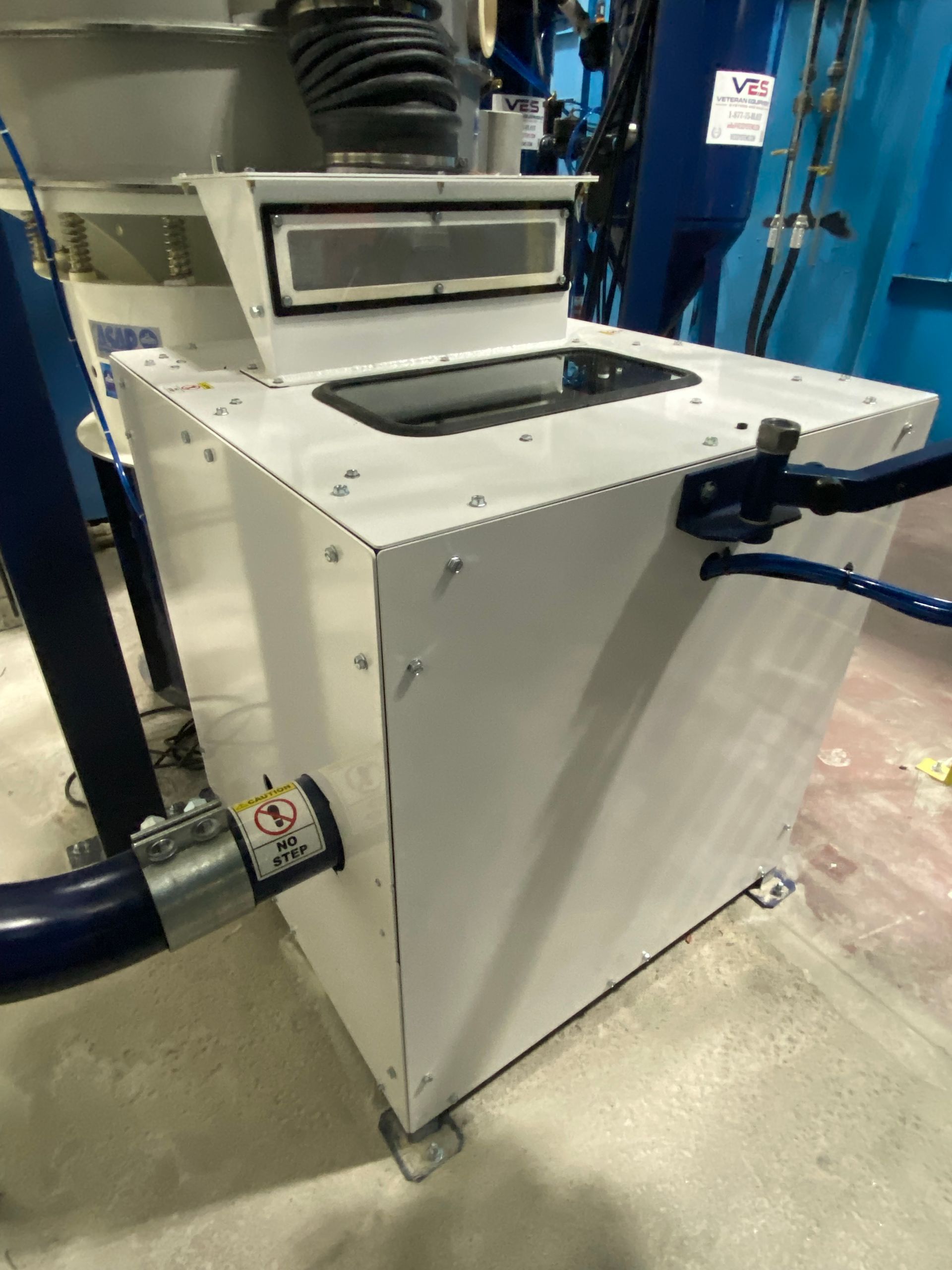

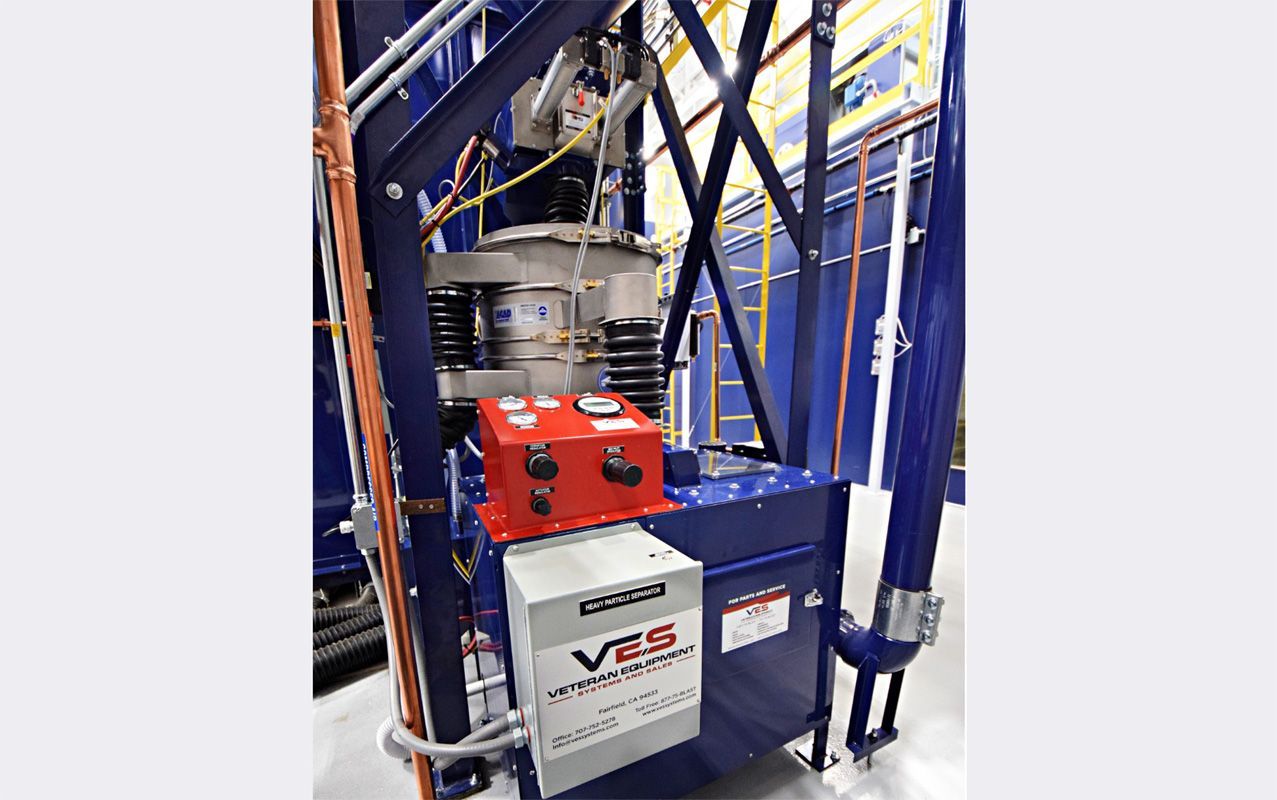

Aerospace Proven and Tested Fluidized Bed Technology
Large-Capacity Dense Particle Separation – Effectively separates dense particles from recovered media for superior cleaning performance
Aluminum Oxide Construction – Provides superior resistance to contaminants and wear for extended service life
Fully Sealed Housing – Seam-welded construction prevents leakage and maintains system integrity
Variable Frequency Drive – Optimizes performance in high-moisture environments for consistent operation
Enhanced Safety and Control Systems
Auto-Shutdown Protection – Enhances operator safety and system efficiency through automatic protection protocols

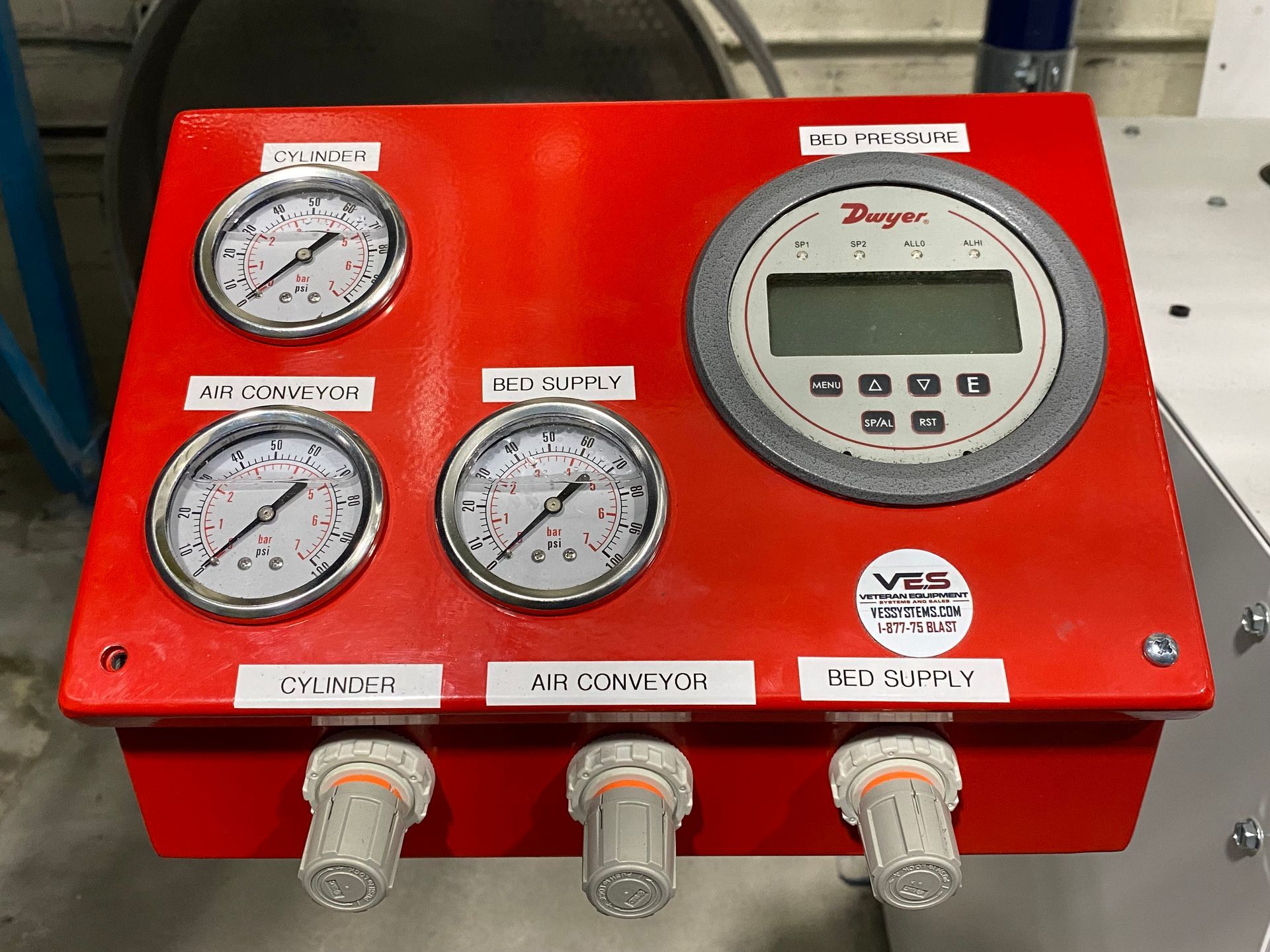

Micro-Processor Controls – Ensures seamless operation for all plastic and starch media applications
Three-Way Cyclonic Separator – Tunable dust-media separation for optimal performance

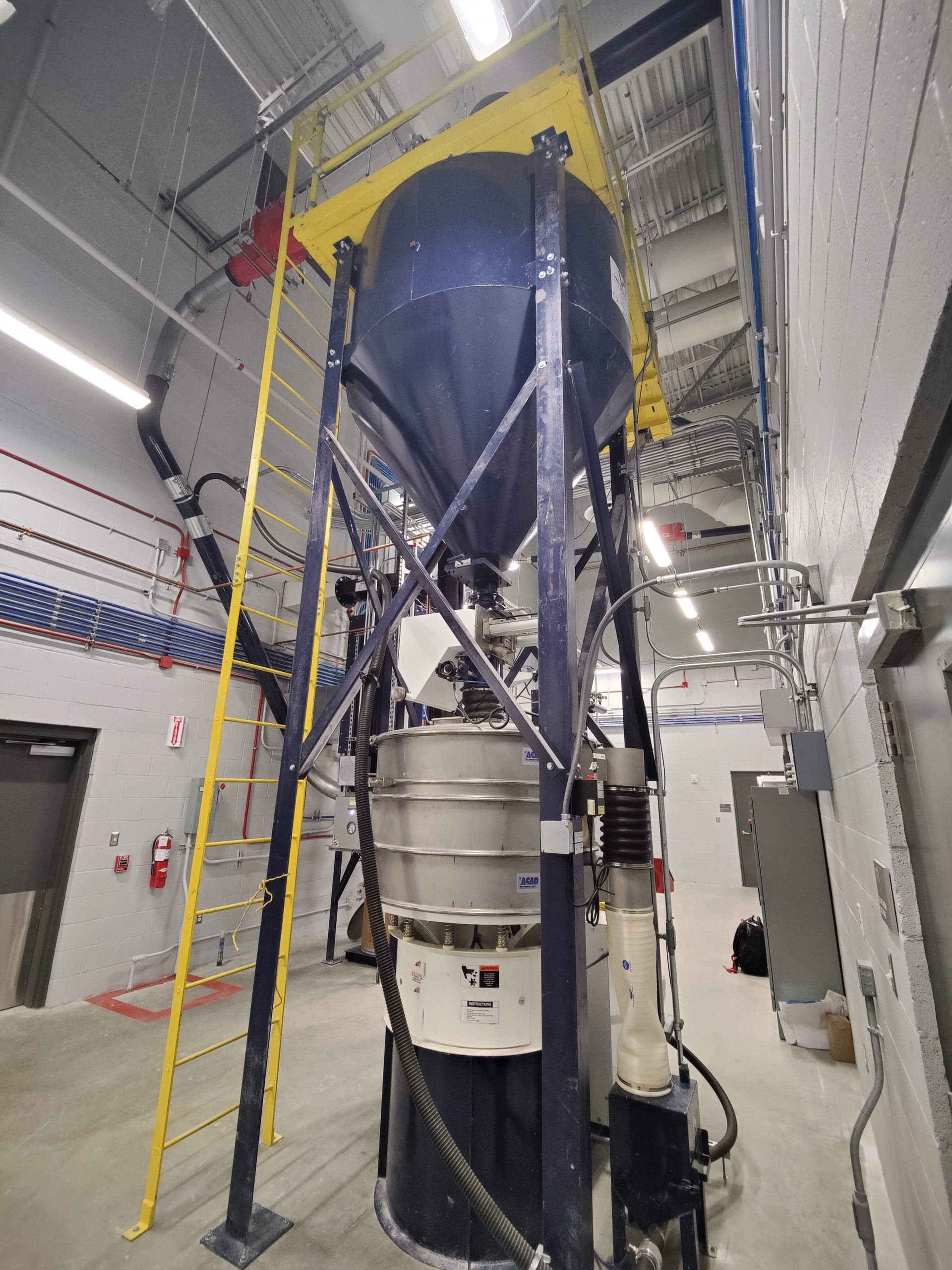

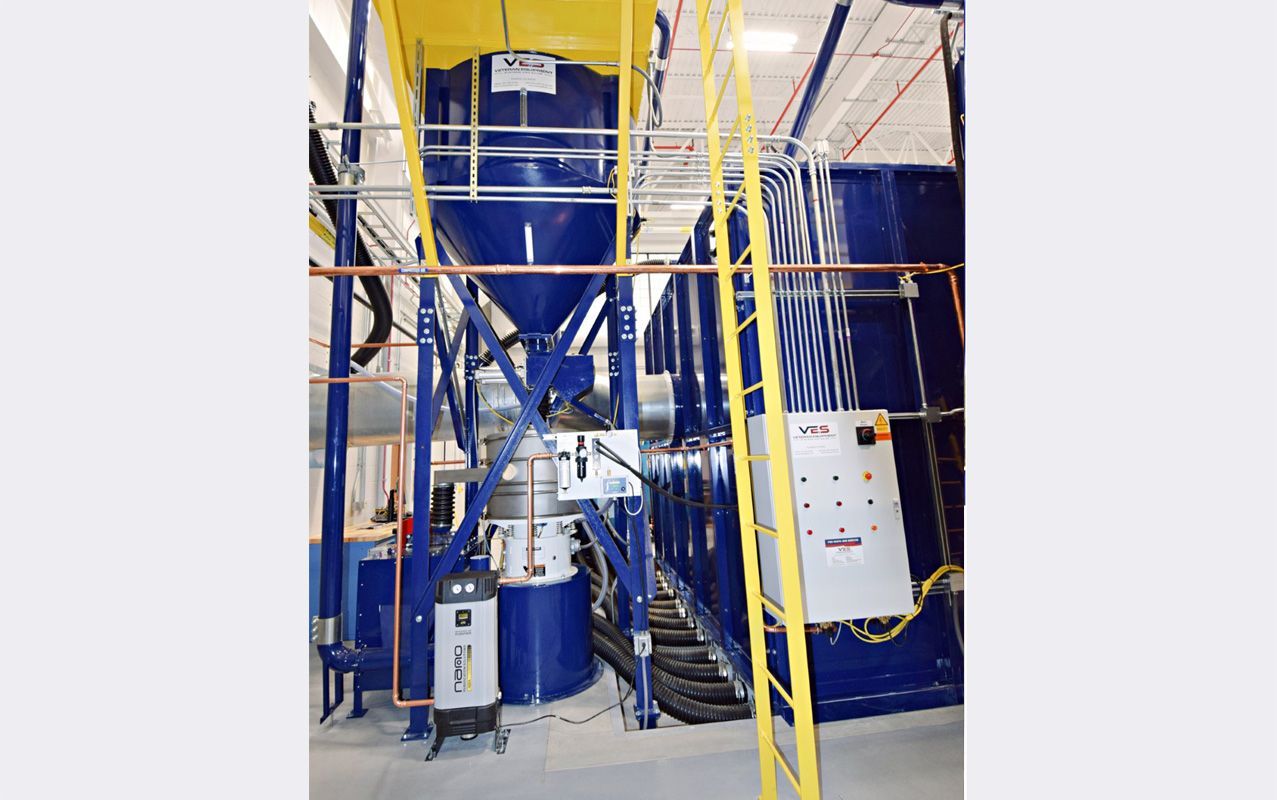

High-Capacity Storage – 100 cu-ft hopper with hi-lo sensors provides maximum system control and monitoring
Safety and Compliance Features
OSHA-Compliant Access – Service ladder, platform, and railings ensure safe maintenance access
Sealed Service Gate – Fully contained slide gate allows safe media separation during servicing
Leak-Proof Construction – Fully welded seams eliminate hazardous dust leakage for operator protection
VES DPS Specifications
| Specification | Imperial | Metric |
|---|---|---|
| Height | 22' 9" | 7 m |
| Variable to accommodate location and storage hopper requirements | ||
| Floor Space Required | 12' x 9' (approximate) | 3.7 m x 2.7 m |
| Air Consumption | 178 CFM at 100 psi | 5041 LPM at 7 bar |
| Recovery Cyclone Processing | 100 lb/minute | 45 kg/min |
| Dense Particle Removal Rate | 30 lb/minute (1800 lb/hour) | 13.6 kg/min (816 kg/hr) |
| Varies with media density & size | ||
| Electrical Requirements | 24 amp at 460V, 3-phase, 60 Hz | |
| 45 amp at 230V, 3-phase, 60 Hz | ||
| Other voltages, phases & frequencies available |
